Product Lines » John Deere » X534 Multi-Terrain™ 48" Deck Riding Mower
Model Quick Search

$7,399.00

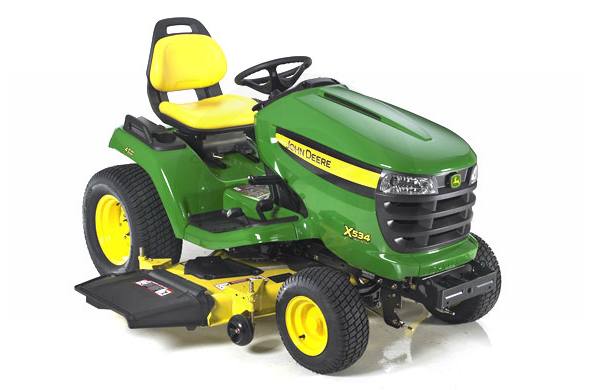

2010 John Deere X534 Multi-Terrain™ 48" Deck Riding Mower
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 25-hp V-Twin, air-cooled, John Deere iTorque™ Power System (which provides more lugging ability, full pressure lubrication, even cooling, and durability) provides excellent power and performance, easy starts and smooth operation
    Performance
    • 5 U.S. gallon fuel tank with a large 3-inch fill opening located on the left fender makes adding fuel easy and helps eliminate spillage
    • Twin Touch™ automatic transmission provides comfortable two-pedal foot control for effortless speed and direction changes
    • Foot-operated traction assist locks rear wheels together for increased traction
    • Hydraulic power steering is standard equipment to maximize the benefits of 4-wheel steering that provides maximum maneuverability and an uncut trim radius of only 13 inches (with 54-inch deck)
    • 48-inch Edge™ Xtra Cutting System is designed to provide excellent performance in all conditions and operating modes including side discharge, mulching and material collection
    Durability
    • Heavy-duty welded frame for the strength to operate a wide variety of equipment
    • Built-in front and rear weight brackets, cast-iron front axle, and 1-in steering spindles provide a platform for more comfort, more versatility, and the durability to mow more acres
    • Internal wet disk brakes for quick stops and long life
    • Front axle is made of nodular cast iron; strong and shock resistant, it will not yield under heavy loads or impact
    • 1-in. steering spindles provide the durability to mow more acres
    Convenience
    • Heavy-duty CargO Mount™ attaching points are designed into the tractor for easy attachment of optional equipment
    • Standard tool tray and cupholder keep tools and beverages within reach
    • Color-coded controls are conveniently located for easy access
    • Convenient dash-mounted fuel gauge indicates fuel level
    • Standard hourmeter makes it easy to tell when oil changes and other maintenance should be performed
    • Separate engine speed and choke controls make starting and warming up the engine easier in cold weather
    • Mower deck height-of-cut control with rotary dial knob provides mower cut height range from 1 to 4 inches in 1/4-inch increments; on-board deck-leveling gauge located in the center of the cut-height adjusting knob
    • Hydraulic lift control for mower deck positioned on dash near steering wheel for quick, easy and precise fingertip control
    Comfort
    • Comfortable, high-back sit-and-adjust seat features 7 inches of travel; springs adjust for operator weight allowing fine tuning of suspension; open-back design allows air circulation to keep the operator's back cool and dry for a more comfortable ride
    • Large 14-inch diameter steering wheel is comfortable to use and minimizes steering effort
    • Full-length foot mats provide comfort for the operator while protecting the footrest area
    • Roomy, uncluttered open platform and fender handles makes getting on and off the tractor easy
    • 5-position tilt steering wheel for increased operator comfort
    Warranty
    • 4-year limited warranty for Select Series™ - 48 Months or 500 Hours, Whichever Comes First
    Engine
    • Power: 25 hp (18.6 kW)
    • Displacement: 41.2 cu. in. (675 cc)
    • Manufacturer: Kawasaki
    • Cylinders: V-twin, cast-iron liners
    • Type: OHV, oil filter
    • Battery: 500 cold-crank amps
    • Choke/Speed Control: Separate levers
    • Cooling Method: Air
    • Fuel Tank Capacity: 5 gal.
    • Fuel Gauge
    Transmission
    • Type: Automatic with differential lock
    • Control: Twin Touch pedals
    • Cruise Control: Lever on dash
    • Forward Speed, mph (km/h): 0-7.2 (0-11.6)
    • Reverse Speed, mph (km/h): 0-4 (0-6.4)
    Chassis
    • Frame: Fully welded
    • Primer/Paint: E-coat/powder
    • Weight Bracket: Standard front, optional rear
    • Front Tires: 16x6.5-8 Turf
    • Rear Tires: 23x9.5-12 Turf
    • Front Axle: Cast iron
    • Hood Material: Xenoy
    • Hourmeter
    • 12 Volt Outlet
    • Service Interval Decal
    • Covered Toolbox
    • Tool Tray, under seat
    • Fender Handles
    • Cup Holder
    Steering
    • Type: Power, 4-wheel steer
    • Tilt Steering Wheel, 5-position
    • Turning Radius, in. (mm): 27 (686)
    • Uncut Circle Radius: 14 in.
    • Spindle Bushings: Metal, replaceable
    Seat
    • Seat Back Height: 16 in. open-back design with handle
    • Fore-aft Adjustment: 7 in. while seated
    • Seat Suspension: Coil springs, three-position no-tools adjustment for operator weight
    Lift System
    • Type: Hydraulic
    • Mower Cut Height: 1-4 in., 13 position
    • Cut Height Increments: 0.25 in.
    • Preset Cut Height
    Mower Deck
    • Type: Side discharge
    • Mower Deck Material: 48X = .120 in. (3 mm)
    • Mower Wheel Adjustment: 7-position, pin and spring clip
    • Mower Drive System: In-line belt
    Mower Attachability
    • Front Draft Arms: Attached with spring pins at two points
    • Rear Draft Arms: Quick-pull pins
    • Belt Tension: Spring with release lever
    • Mower Wheels Rotate, 90 degrees for easy mower removal
    Safety
    • Meets ANSI Standard
    • OPEI Label: No
    • Backup Protection: RIO
    • Safety Video
    Optional Attachments
    • Rear Bagger: No
    • Powered Collection: 7-, 14-, 19-bu. Power Flow
    • Mulching System
    • Front Thatcher: 38-, 46-, 54-in.
    • Front Blade: 48 in.
    • Snow Blower: 47 in.
    • Front Bumper: Standard equipment
    • Brush Guard
    • Bucket Holder, double
    • Weather Enclosure
    • Sleeve Hitch: implements include box scraper, rear blade, plow, disk, and cultivator
    • Tow-Behind Tools: 17
    • Tractor Shovel: 40 in.

    Specifications

    Engine
    Engine Manufacturer Kawasaki
    Horse Power 25 hp (18.6 kW)
    Engine Type V-twin, cast-iron liners
    Displacement 41.2 cu. in. (675 cc)
    General
    Transmission Automatic with differential lock
    Wheel Size Front Tires: 16x6.5-8 Turf; Rear Tires: 23x9.5-12 Turf
    Fuel Capacity 5 gal.
    Deck
    Deck Size 48 in.
    Discharge Type Side; Optional: Bagger, Bulcher

    Compare Models

    		 Print








    Year 2010
    Manufacturer John Deere
    Model X534 Multi-Terrain™ 48" Deck Riding Mower
    Style Riding
    MSRP* $7,399.00
    Deck
    Deck Size 48 in.
    Discharge Type Side; Optional: Bagger, Bulcher
    Engine
    Engine Manufacturer Kawasaki
    Horse Power 25 hp (18.6 kW)
    Engine Type V-twin, cast-iron liners
    Displacement 41.2 cu. in. (675 cc)
    General
    Transmission Automatic with differential lock
    Wheel Size Front Tires: 16x6.5-8 Turf; Rear Tires: 23x9.5-12 Turf
    Fuel Capacity 5 gal.
