$909.95

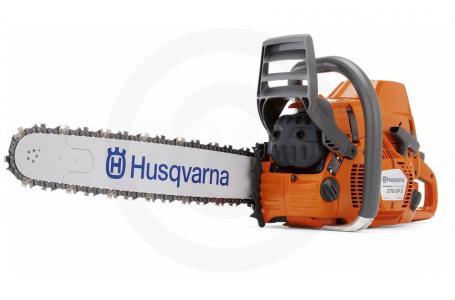

2010 Husqvarna 576 XP G 24" Bar Chainsaw
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Our most advanced saw for demanding professional use. It features our new X-Torq® engine that provides high torque over a very wide rpm range, combined with low fuel consumption and low exhaust emission levels. Ergonomically improved handles reduce fatigue. Smart Start® provides easy starting and Air Injection makes the saw run stronger and longer. Heated handles increases comfort in cold conditions.


24" - 3/8" - .050 - EPA - US, CA

    Features
    • Front handle ergonomics: Better grip and a 7° offset handle reduces fatigue.
    • Optimized saw body: No protruding parts, a smooth underside, rounded starter cover and well-protected controls all make the saw easy to handle.
    • Felling marks: Distinct, colored marks used for aiming the direction of timber fall.
    • Heavy-Duty Air Filter: This easily accessible filter is designed to handle the high volume of airflow specific to a large professional saw.
    • Air Injection: Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.
    • Improved handle design: the rear handle is asymmetrically designed with comfort inserts for a more stable and less tiring grip.
    • Side-mounted chain tensioner: Easier access to chain tensioning device.
    • Magnesium crankcase: Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
    • Three-piece crankshaft: Forged three-piece crankshaft for maximum durability for the toughest applications.
    • X-Torq®: Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
    • Smart Start: the engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
    • Snap-lock cylinder cover: Saves time when changing spark plugs and cleaning.
    • Adjustable oil pump: Allows you to control oil flow depending on application and weather conditions.
    Engine specifications
    • Cylinder displacement: 73.5 cc
    • Power output: 5.7 hp
    • Idling speed: 2700 rpm
    • Maximum power speed: 9600 rpm
    • Cylinder bore: 2.01 in.
    • Cylinder stroke: 1.42 in.
    • Ignition system: SEM AM50
    • Ignition module air gap: 0.01 in.
    • Spark plug: NGK BPMR7A
    • Electrode gap: 0.02 in.
    • Carburetor model name: ZAMA C1M-EL28
    • Fuel tank volume: 1.48
    • US pint Oil tank volume: 0.78
    • US pint Oil pump type: Adjustable flow
    • Oil pump capacity: 5-22 ml/min
    Cutting equipment
    • Chain pitch: 3/8 in.
    • Recommended bar length, min-max: 16 in. -32 in.
    • Chain speed at max power: 70.21 fts
    • Bar: 24 in.
    • Gauge: .050 in.
    Emission, vibration & noise data
    • Equivalent vibration level (ahv , eq) front / rear handle: 2.9/3.6 m/s²
    • Sound pressure level at operators ear: 105 dB(A)
    • Guaranteed sound power level, LWA: 116 dB(A)
    Overall dimensions
    • Weight (excl. cutting equipment): 14.55 lbs

    Specifications

    Engine
    Displacement 73.5 cc
    Horse Power 5.7 hp.
    General
    Weight 14.55 lbs
    Bar Length Options 16 in. - 32 in.

    Compare Models

    		 Print








    Year 2010
    Manufacturer Husqvarna
    Model 576 XP G 24" Bar Chainsaw
    Style Gas Powered
    MSRP* $909.95
    Engine
    Displacement 73.5 cc
    Horse Power 5.7 hp.
    General
    Weight 14.55 lbs
    Bar Length Options 16 in. - 32 in.
