$9,299.00

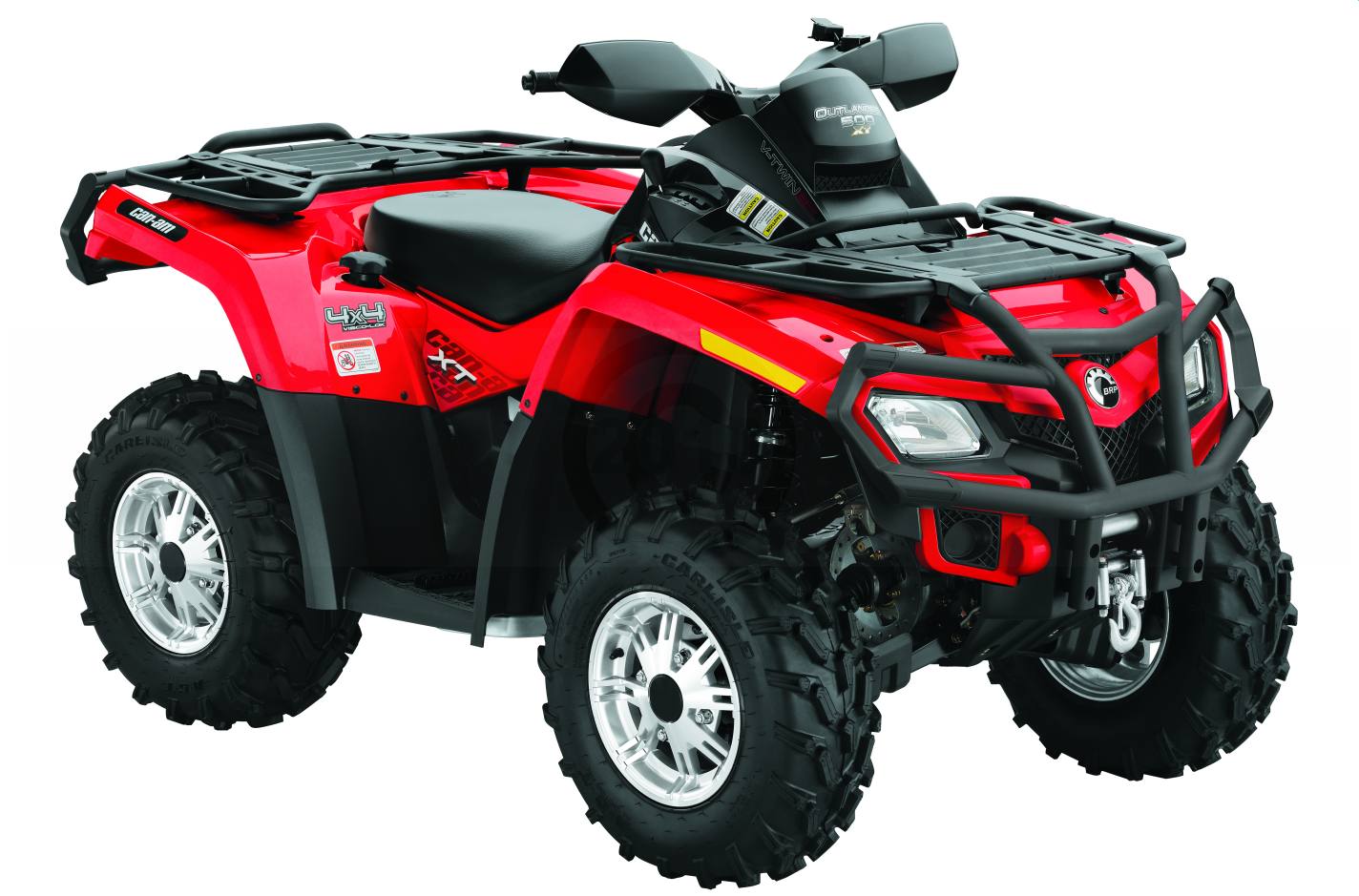

2010 Can-Am Outlander 500 EFI XT
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Say hello to the Outlander 500 EFI. Powered by the only V-twin in the category, it delivers more power (40.4-hp) and a better power-to-weight ratio (6.3 hp per 100 lbs) than any bike in its class. Featuring new cast-aluminum wheels for less unsprung weight, more mass centralization and better handling. Along with a redesigned fascia for more airflow to the radiator. In other words, it’s time to stop reading and start riding.

  • Rotax 500 EFI engine – 40.4 hp
  • New cast-aluminum wheels with 25-inch radial tires
  • New front fascia design
  • TTI independent rear suspension
  • MacPherson front suspension
  • Visco-Lok† auto-locking front differential
  • Continuously Variable Transmission [CVT]
  • Center skid plate
  • Multi-function digital gauge
  • Digitally Encoded Security System (D.E.S.S.)
  • Steel racks with 300-pound [136 kg] capacity
Engine
  • Type: 499.6 cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
  • Bore & Stroke: 82 x 47 mm
  • EFI System / Carburetor: 46-mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
  • Drivetrain: Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
  • Frame: SST
  • Front Suspension Type: MacPherson
  • Front Travel: 7 in (178 mm)
  • Rear Suspension Type: TTI independent
  • Rear Travel: 9 in (229 mm)
  • Front Brake: 2 inboard hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: 25 x 8 x 12 in (635 x 203 x 305 mm)
  • Tires/Rear: 25 x 11x 12 in (635 x 279 x 305 mm)
  • Wheels: Cast-aluminum wheels
Dimensions
  • L x W x H (in): 86 x 46 x 45 in
  • L x W x H (mm): 2,184 x 1,168 x 1,143 mm
  • Wheelbase: 51 in (1,295 mm)
  • Seat Height: 34.5 in (877 mm)
  • Ground Clearance: 11 in (279 mm)
  • Dry Weight: 654 lbs (297 kg)
  • Towing Capacity: 1,300 lbs (590 kg)
  • Rack Capacity: 100 lbs (45 kg) 200 lbs (90 kg)
  • Storage: Rear storage 5.3 US gal (20 L)
  • Fuel Capacity: 4.3 US gal. (16.3 L)
Other Features
  • Instrumentation: Multi-function digital LCD gauge : speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meter, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
  • Anti-Theft: Digitally Encoded Security System (D.E.S.S.)
  • Electrical: Prewired for winch
  • Lighting: 2 fender mounted headlamps (35W) with tail light / brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Color(s) available: Yellow, Viper Red, Camo
XT Package
  • New dual-mode Dynamic Power Steering (DPS)
  • New Visco-Lok QE with quicker engagement point
  • New 650-watt magneto for more power output
  • BRP XL3000 winch Roller fairlead, wired remote control and integrated winch remote storage
  • Redesigned heavy-duty front and rear bumpers
  • New XT-specific cast-aluminum wheels
  • Carlisle‡ 25-inch ACT radial tires
  • Handlebar wind deflectors
  • XT color option: Yellow, Red or industry-exclusive NEXT® G-1 Vista™ camouflage.

Specifications

Engine
Engine Type V-twin, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension MacPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 11x 12 in. (635 x 279 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 654 lbs. (297 kg)
Front Rack Capacity 100 lbs. (45 kg) 200 lbs. (90 kg)
Towing Capacity 1,300 lbs. (590 kg)
Fuel Capacity 4.3 gal. (16.3 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 86 x 46 x 45 in. (2,184 x 1,168 x 1,143 mm)
Wheelbase 51 in. (1,295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok† front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
General
Speedometer Digital LCD
Tachometer Digital LCD
Odometer Digital LCD
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Yellow, Viper Red, Camo

Compare Models

 Print








Year 2010
Manufacturer Can-Am
Model Outlander 500 EFI XT
Style Sport
MSRP* $9,299.00
Chassis
Front Suspension MacPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (635 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 11x 12 in. (635 x 279 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 654 lbs. (297 kg)
Front Rack Capacity 100 lbs. (45 kg) 200 lbs. (90 kg)
Rear Rack Capacity
Towing Capacity 1,300 lbs. (590 kg)
Fuel Capacity 4.3 gal. (16.3 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 86 x 46 x 45 in. (2,184 x 1,168 x 1,143 mm)
Wheelbase 51 in. (1,295 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok† front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
Engine
Engine Type V-twin, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 47 mm
Cylinders
Engine Cooling Liquid cooled
Fuel System 46-mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Digital LCD
Tachometer Digital LCD
Odometer Digital LCD
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Yellow, Viper Red, Camo
